Web Console Manual

The R2Kernel™ Web Console is the browser-facing operations surface for one host control backend. It shows runtime status, resources, packages, specs, diagnostics, and configuration from the same HTTP origin as the REST and WebSocket APIs.

The Console is not the native transport hot path. Browser traffic enters through the control backend facade, while native Event, Control, Procedure, and Operation paths remain inside the R2Kernel runtime boundary.

Access

The bundled Console is available when the runtime configuration uses control.frontend.mode=bundled, which is the default installed mode. Frontend policy is part of the host runtime configuration; see Runtime Configuration before replacing or disabling the system frontend.

Open the configured Console address. A new installation starts with HTTP on loopback port 18080.

http://127.0.0.1:18080/

Settings → Security → Console connection selects the protocol and its port. HTTPS defaults to 18443 when enabled. Missing Console port values use the current defaults. Existing explicit ports remain unchanged, including legacy HTTP 8081, HTTPS 8443, and control.ui_port: 0 API sharing.

The independent product API origin defaults to http://127.0.0.1:8001 and serves.

REST APIs under /api/v1/control/*
stable product-facing REST APIs under /api/v1/*
WebSocket facade endpoints under /api/v1/ws/events and /api/v1/ws/control
static package frontends under /api/v1/packages/<package-id>/ui/

When security is enabled, browser users should log in through the Web session. API keys are for external REST/WebSocket clients, automation, and monitoring. See Web and API Security.

Use Product Frontend Modes when a product should serve its own static SPA from the control backend or run Host Control APIs without serving the bundled Console. Managed package frontends are separate and continue to use /api/v1/packages/<package-id>/ui/.

Workspace

The Console uses a desktop-style workspace.

open tools from the left launcher
keep multiple tools open at the same time
move, resize, minimize, maximize, snap, restore, and close windows
double-click a title bar to maximize or restore
use density control when screen space is limited

Use this model when comparing host status with specs, watching Console traffic while inspecting Resources, or managing Packages while Overview remains visible.

Page Map

Page	Use
Overview	host identity, readiness, federation peers, and connection surfaces
Resources	host inventory, resource authority, and active leases
Runtime	registered subsystems, interface graph, bindings, and managed instance lifecycle
Specs	runtime-visible spec dictionary
Packages	package install/removal, resource claims, and static package UI links
Messages	browser-safe Event, Procedure, and Operation testing
Terminal	operating-system login in the right-hand workspace
Settings	categorized runtime configuration, security, Terminal setup, and apply actions

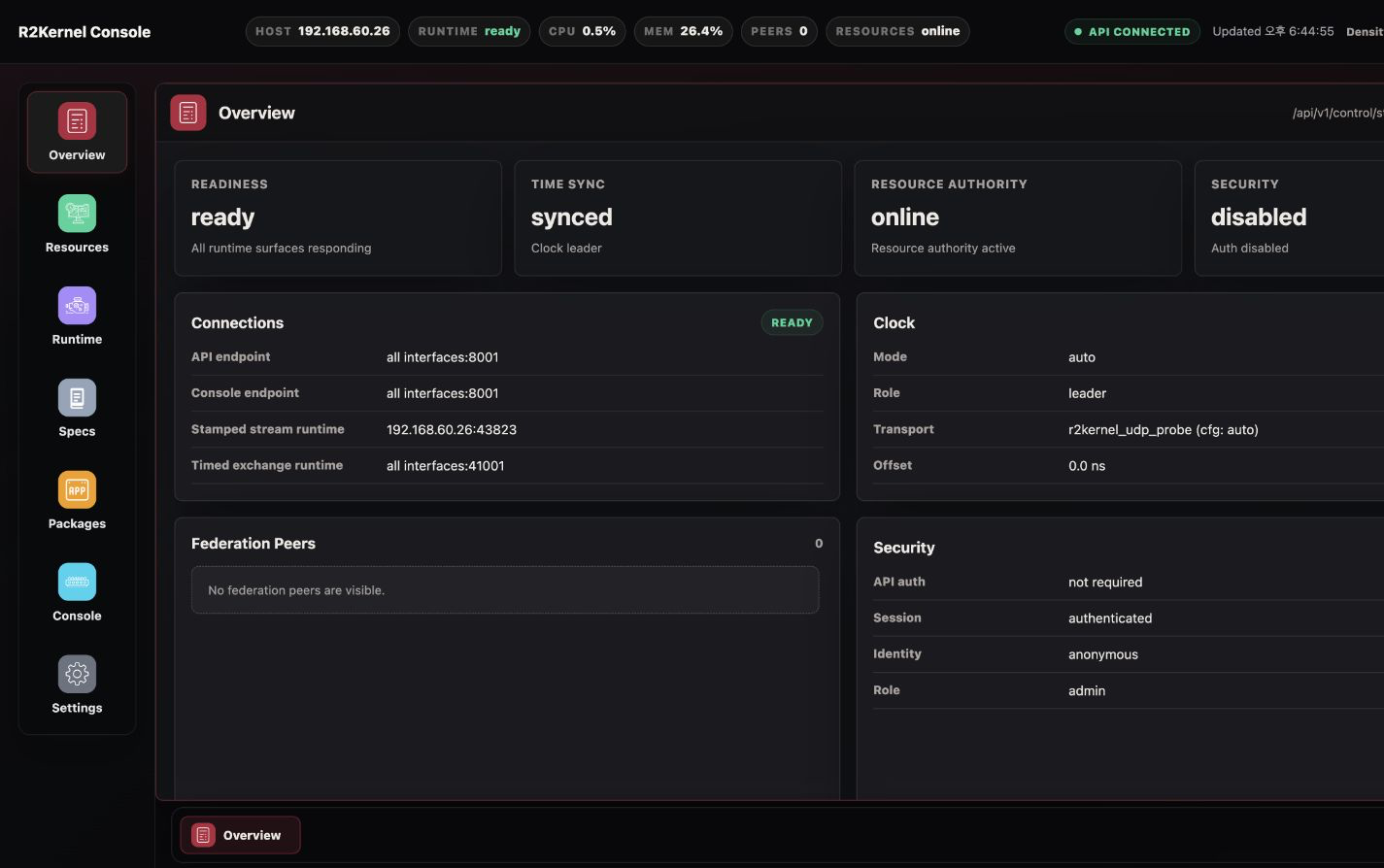

Overview

Overview is the first page to check on a host.

It answers these questions.

is the host ready?
is time sync accepted for the current workload?
is the resource authority online?
which peers are visible?
which connection surfaces are exposed?

Important distinction.

Assigned address is the host identity or reachable federation address.
API host is the local bind address for product REST and WebSocket endpoints.
Console HTTP uses control.ui_host (the API host when empty) and control.ui_port; native HTTPS uses control.management_https.

Use Open Console on a peer when an issue must be inspected from that host's own control backend.

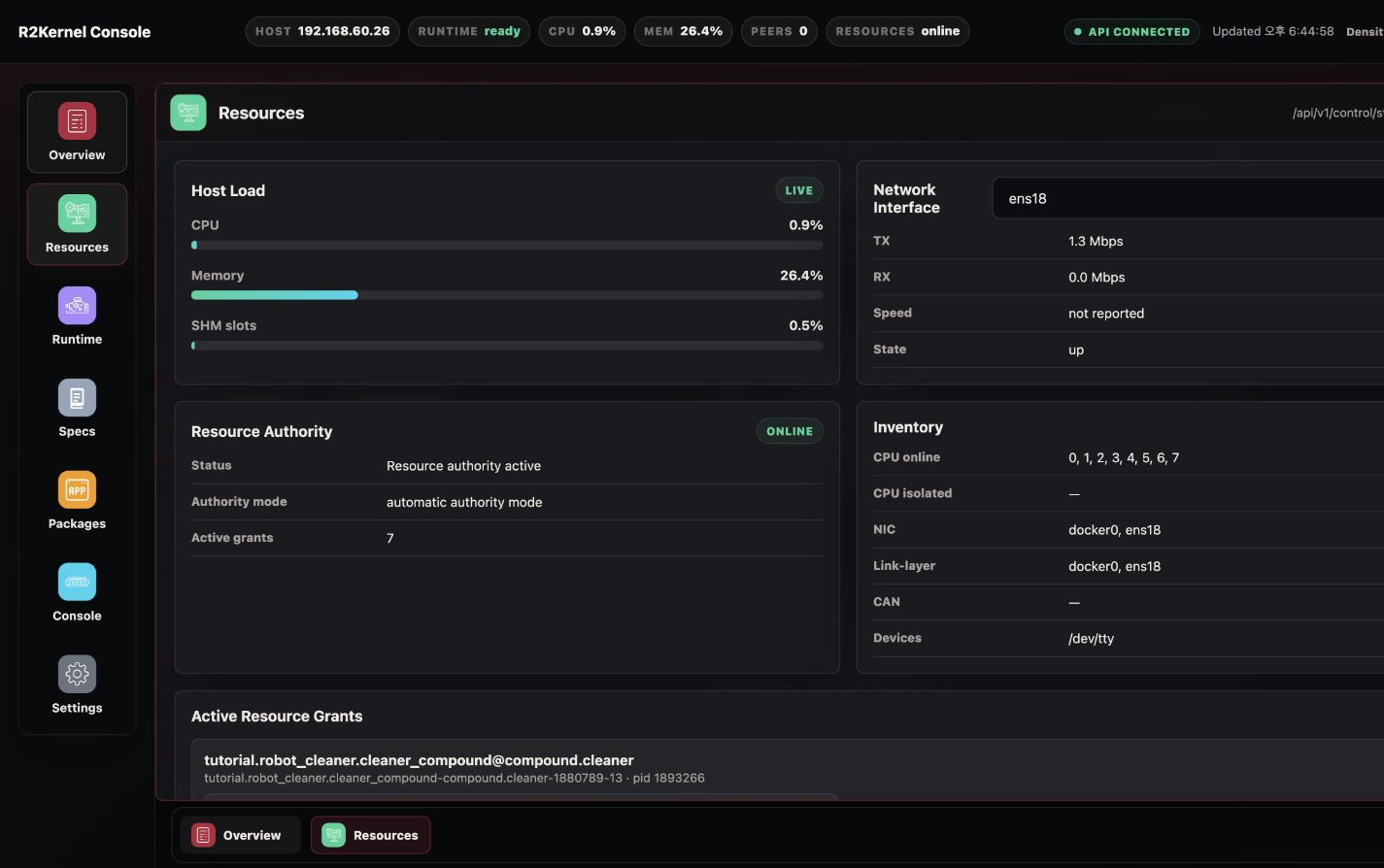

Resources

Resources combines live host telemetry with resource-authority state.

Use it to inspect.

CPU and memory usage
NIC inventory, state, speed, and counters when the host reports them
resource-service health
active managed leases
CPU, NIC, CAN, serial, device-node, sandbox, and limit claims

Active leases are allocations owned by managed package or launcher processes. If the resource service is unavailable, the Console may still show basic host usage, but managed resource-control guarantees are not active.

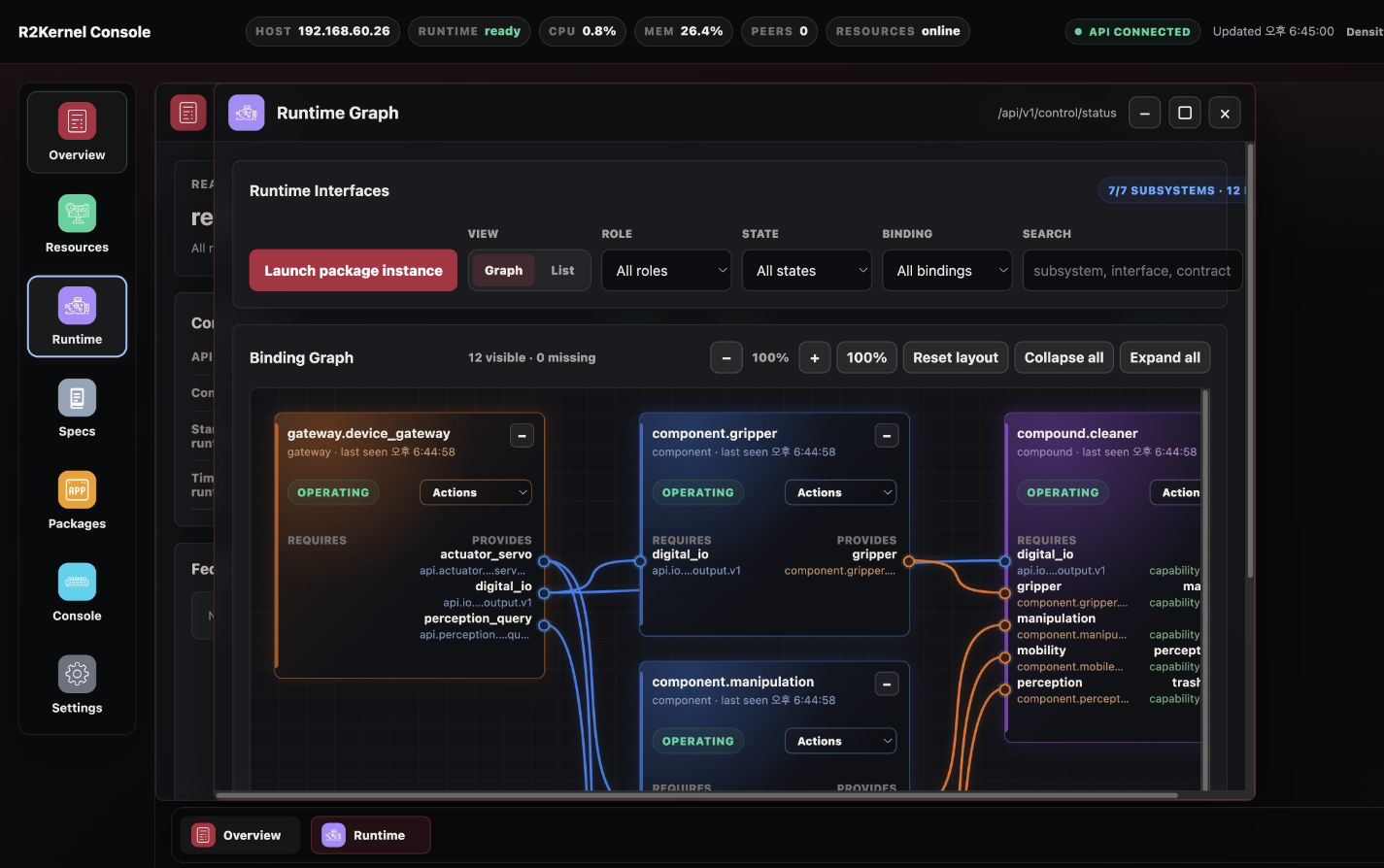

Runtime

Runtime shows the native R2Kernel runtime from the control backend viewpoint. It can be viewed as a detailed list or as a graph. The graph places communication and spatial composition on the same subsystem cards. Circular ports show required and provided interfaces under System surface. Diamond ports show physical attachment points and provided frames under Spatial surface. Component and compound cards use the same spatial surface rows on the right. This placement distinguishes public spatial ports from communication requirements. A compound adds an Internal composition section for its mount relationships. Dashed lines connect component or nested compound ports to those compound-owned mounts. A provided frame can show its source, such as body ← mobility.body, inline rather than as a second topology line.

Use it to inspect.

registered subsystems and lifecycle state
launch, stop, or restart managed package subsystem instances
Event publish and subscribe surfaces
federation-visible Event streams
provided and required interfaces from subsystem manifests
deployment bindings between required and provided interfaces
runtime bindings set interactively during development or repair
Control endpoints
Procedure endpoints
Operation endpoints
spec references attached to contracts

Control is separate from Procedure and Operation.

Control is periodic timed exchange traffic with period and deadline intent.
Procedure is bounded synchronous request/response.
Operation is asynchronous execution with goal, feedback, state, and result.

Open spec references from Runtime rows when contract details need inspection. In Graph mode, each subsystem is shown as a card with required interfaces on the left and provided interfaces on the right. Select a required interface to see compatible providers with the same contract, then bind or unbind it without restarting the subsystem. Select a provided interface to see which consumers are currently attached.

Each contract row uses a compact status icon for standard, non-standard, or temporarily unverified while the dictionary is loading; hover the icon to read the full status. Standard status means that the contract reference is present in the built-in R2Kernel spec dictionary. Package or vendor contracts remain valid extension points, but the graph renders their diamond warning icon and contract text in magenta italics. Edge tooltips and the Spec Dictionary repeat the same registry classification, and the graph legend reuses the same icons and colors, so a local alias cannot be mistaken for a standard compatibility contract.

Drag the grip in a card's lower-right corner to change its width. Reset layout restores both positions and widths. Gateway cards are narrower by default and show only the provided interface column because a gateway is a primitive runtime boundary and cannot require another subsystem interface.

Use the Interfaces, Spatial, and Internal frames layer controls to reduce or expand the graph without changing its subsystem layout. Select a spatial port or compound mount to inspect its resolved frames, translation, rotation, observation time, and stale state. Stale transforms remain visible for diagnosis but are not used by runtime frame lookup.

Runtime is also the place to manage concrete package instances. The Packages page installs reusable packages; Runtime launches a selected package as a named instance and then shows that instance in the same graph as gateway, component, compound, and app subsystems. Stop and Restart actions belong here because they affect a running subsystem, not the installed package record.

Runtime bindings are stored by the running control backend and override launch bindings while that backend is alive. Use deployment manifests for product composition, and use Runtime Graph binding edits for source-level development, diagnosis, or operator repair.

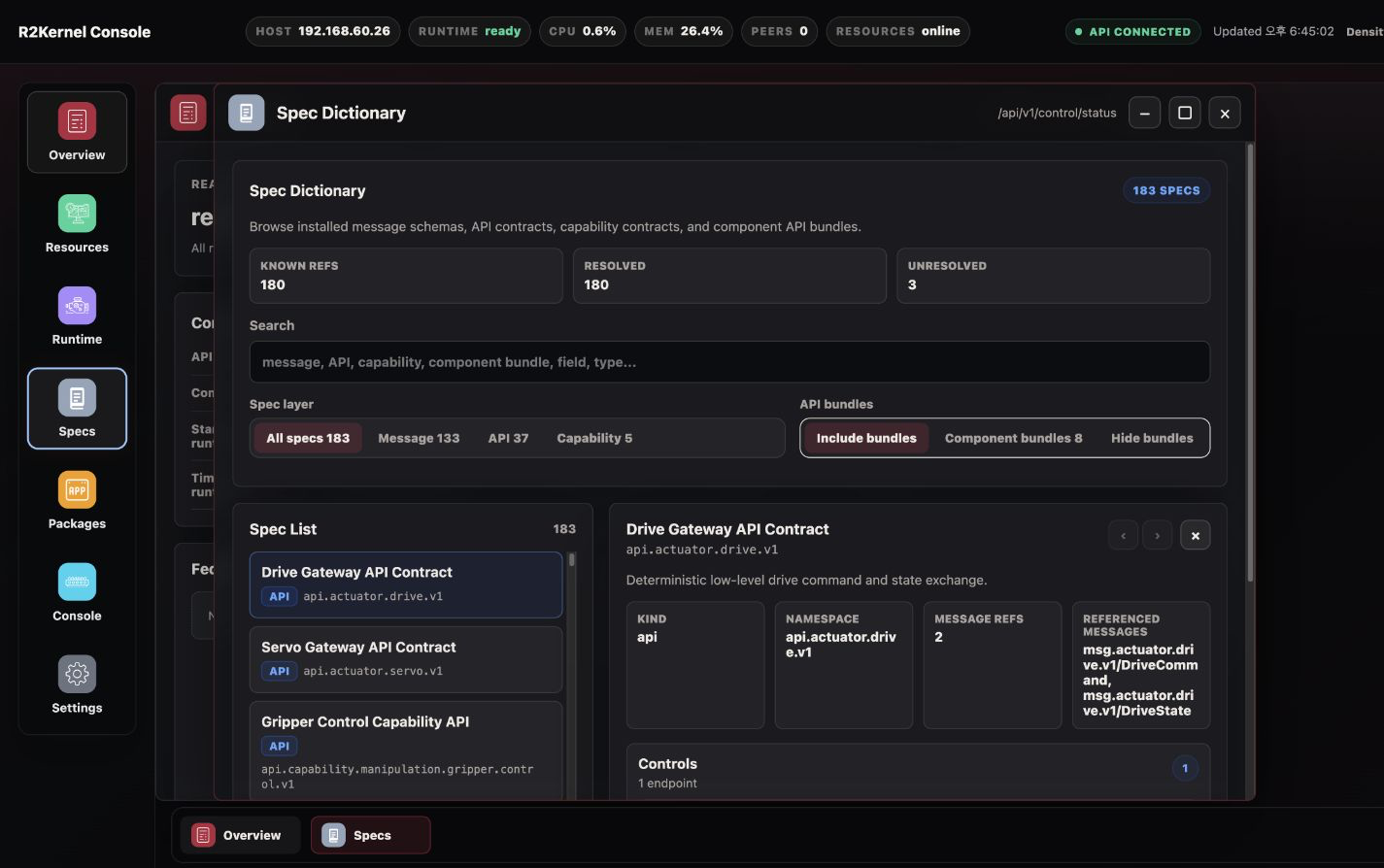

Specs

Specs is the runtime spec dictionary.

Use it for these actions.

search available schema references
inspect fields and nested schema references
open a spec directly from Runtime
identify unresolved package-local or installed spec references

The dictionary is read-only. Spec source is owned by installed runtime specs, SDK specs, and package-local contracts.spec_roots.

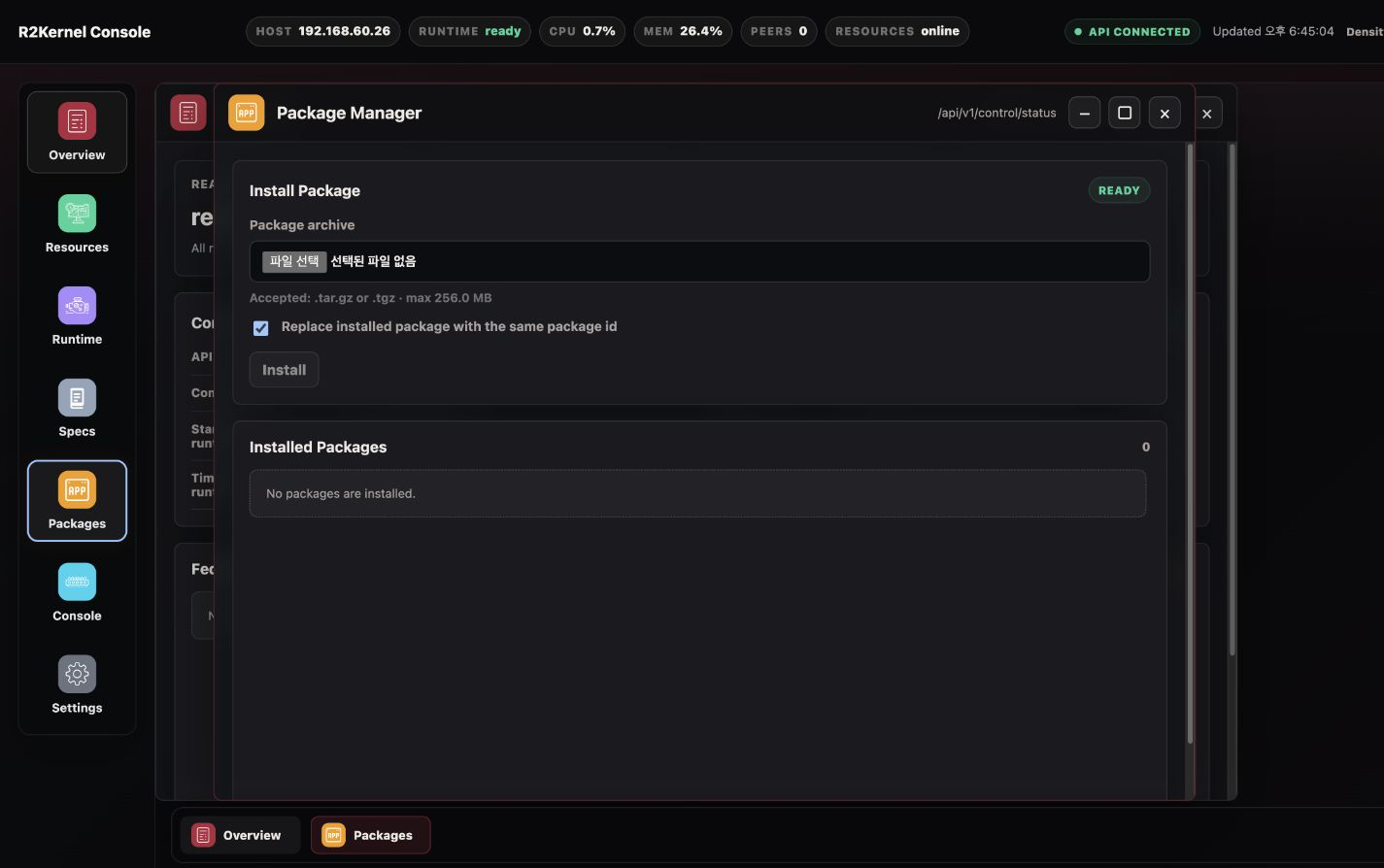

Packages

Packages manages R2Kernel packages installed on the host.

Use it for these actions.

upload a .tar.gz or .tgz package archive
validate and install a package into packages.install_dir
inspect installed package metadata and resource claims
uninstall installed packages when no instances are running
inspect external packages discovered through packages.additional_paths

Runtime instances, lifecycle controls, and instance-scoped Open UI actions belong to the Runtime page. The Packages page does not retain or present past runtime instance history.

Product installs set packages.install_dir to <prefix>/var/lib/packages so installed packages survive runtime replacement and remain writable by r2kernel-control.service.

External package paths are configured from Settings > Packages. External packages can be launched from Runtime like installed packages, but the Packages page cannot uninstall them because R2Kernel does not own their source directory.

Installation registers the package once. Launching from Runtime creates a runtime instance from that package. The same package can run more than once when each running instance has a unique instance id and the package uses {{instance.id}} or package parameters instead of hardcoded runtime names.

Installed package instances start through the same managed path as follows.

r2kernel launch run <package> --instance <instance-id> --detach

That means resource admission, environment injection, brokered socket/device policy, affinity, and cgroup placement follow the package runtime path.

Static package frontends are served from this path.

/api/v1/packages/<package-id>/ui/

Only frontend.type: static is supported. That URL is package-scoped. When an instance is running, open its UI from the Runtime instance so Console can add the instance context.

/api/v1/packages/<package-id>/ui/?instance=<instance-id>&context=/api/v1/packages/<package-id>/instances/<instance-id>/context

Frontend code should read the context endpoint and then use the returned same-origin proxy paths.

/api/v1/packages/<package-id>/instances/<instance-id>/api/
/api/v1/packages/<package-id>/instances/<instance-id>/ws

Packages with browser UI should package the built static files and declare them in the package frontend section. If a package needs package-specific REST or WebSocket GUI communication, declare frontend.context.api and/or frontend.context.ws as localhost endpoint templates instead of hardcoding host ports in browser code. role: app packages have additional resource policy: application subsystems must use bound platform capabilities instead of claiming NIC, CAN, serial, or device resources directly.

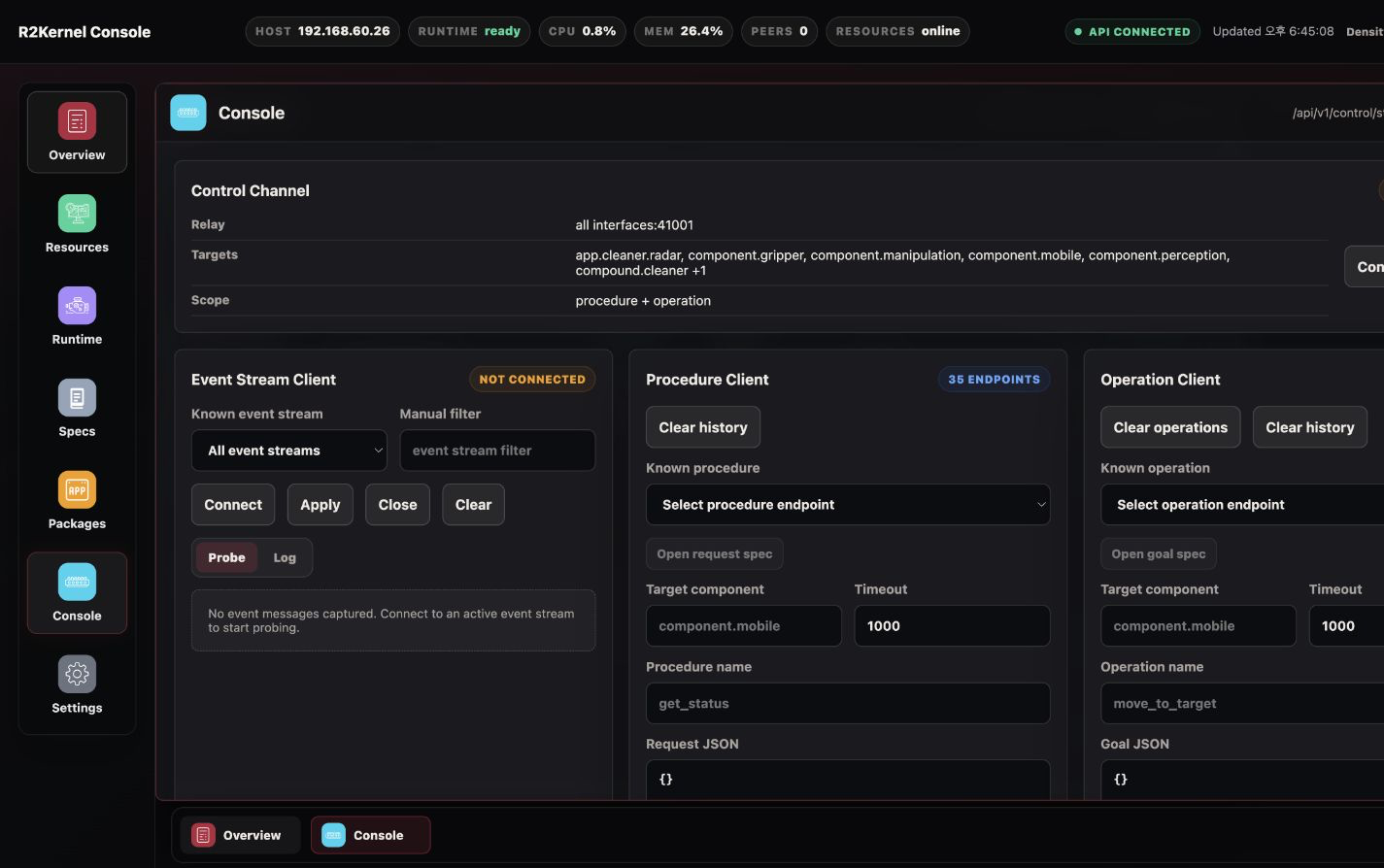

Messages

Messages exposes the browser-safe WebSocket facade. It is not an operating-system terminal or merely a log viewer.

/api/v1/ws/events observes Event traffic.
/api/v1/ws/control sends Procedure and Operation control messages.

Use Event Probe when you want one live card per Event stream. Use Event Log when you need chronological messages.

Use Procedure Client for immediate request/response calls. Use Operation Client for asynchronous operations that may be accepted, queried, canceled, or completed later.

If Procedure or Operation calls fail, connect the Control Channel first and select targets from the known endpoint candidates instead of typing names manually.

For browser-facing message details, see WebSocket Facade and Host Control WebSocket Messages.

Terminal

The optional Terminal has its own menu and an OS login screen; /terminal.html also provides a standalone page. It is an operating-system management session, not a Control interface or a Procedure/Operation client. Local OS login opens the login prompt in the OS environment running Control. A native installation uses device accounts; a container installation uses accounts in that same container, never Kubernetes Node accounts. Enter an existing OS username and password in the terminal. The r2kernel service account is non-login (nologin); no human account is automatically logged in, and no root shell is automatically granted.

Terminal uses the current Console connection and stays inside the Console layout. HTTP Console uses ws; HTTPS Console uses wss. Select the Console protocol in Settings → Security → Console connection. HTTPS supports a device-generated certificate/private-key pair or your own PEM pair. Save and apply connection settings to restart Control, then choose Reconnect to Console when the connection address changes; a generated certificate may need browser trust confirmation. Product frontends keep their own HTTP routes and authentication. HTTP and HTTPS Console sessions are separate, so sign in again after changing protocol when Console login is ON.

This feature is disabled by default and is independent of Console login. Local login uses the OS account login prompt, including when Console login is OFF, and requires an explicitly permitted browser origin. Managed native Linux installations provision the local login broker. A container image must provide OS login, existing accounts, and required broker permissions; restricted Pods that prohibit the required OS user transition cannot provide this feature merely by enabling it. Web Terminal never connects to an SSH server and has no remote target, port, or key configuration.

Disconnect when finished. Applying Terminal settings, runtime apply, or closing the page ends the relay session. Shell output and credentials are not retained as terminal audit records, but normal OS authentication auditing and user shell history still apply. Passwords entered for OS login or later su/sudo pass through the browser; use a trusted management browser and origin. Commands deliberately detached from a shell can continue after disconnection; OS permissions and process policies still apply. See Web and API Security.

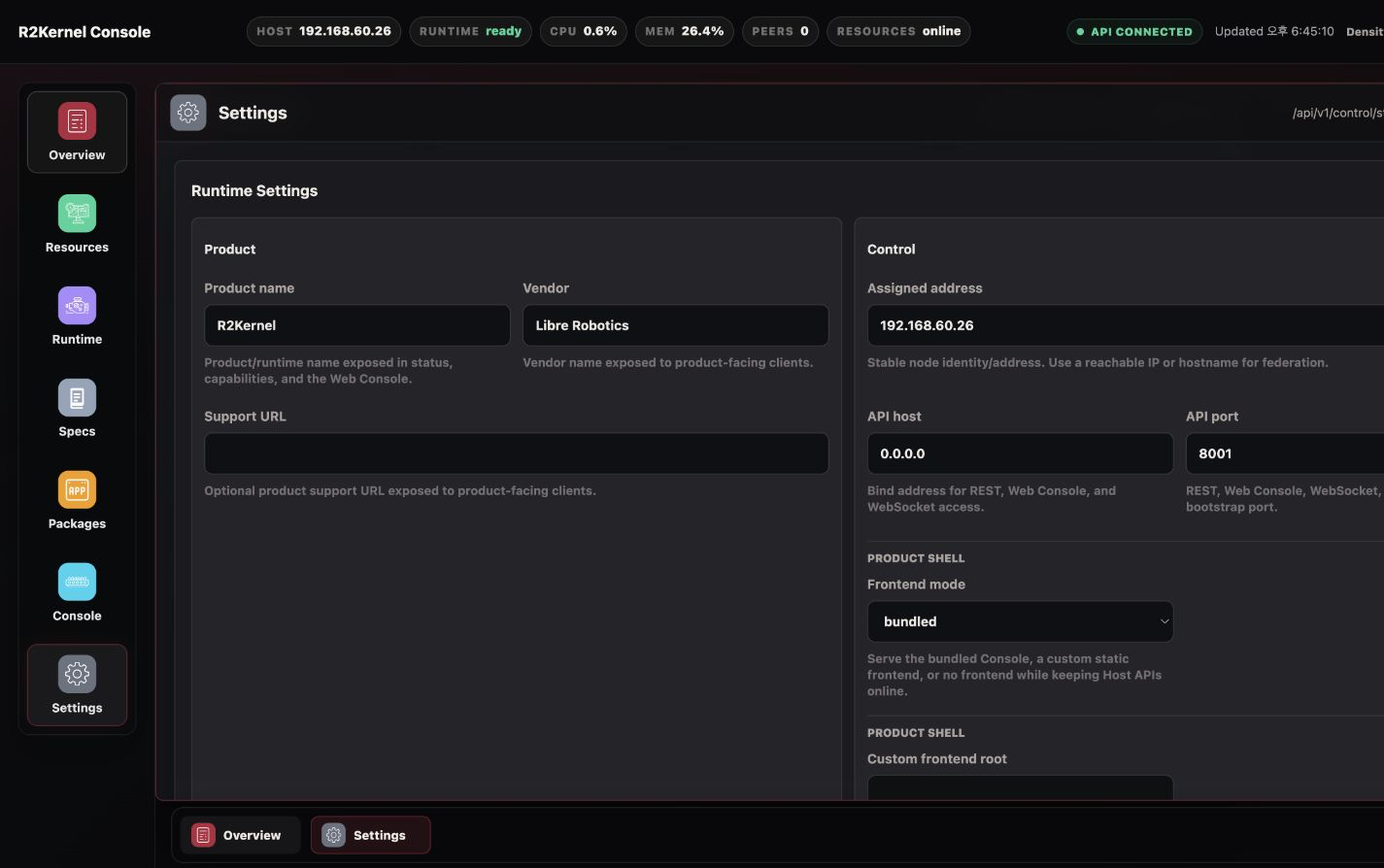

Settings

Settings lets you edit the runtime configuration managed by r2kernel-config. It is the browser surface for the model introduced in Runtime Configuration. Like r2kernel config tui, it records operator changes in the runtime override file rather than rewriting the base config.

The top of Settings separates the startup configuration snapshot (Running), the resolved configuration on disk (Saved), and unsaved form edits (Draft). Saving does not apply changes to the running process. Use the left category navigation, or the category selector on a narrow screen, to edit related settings. Form edits are saved together across categories. The GUI and CLI TUI use the same field metadata and resolver; JSON arrays and objects entered in compound form fields are also valid YAML.

The service reports whether its configuration is writable. A protected system configuration or a read-only deployment must use its local administrator procedure; do not make the installation directory broadly writable. If another administrator changes the files while a draft is open, saving rejects the stale revision instead of overwriting that change.

Managed native service installation provides a private Control settings override shared by the Web Console and CLI. Login and Terminal policy can be saved from Settings without granting write access to runtime code or privileged system configuration. System-owned fields remain visible but read-only, with an explanation. Advanced Override writes the Control settings override only; it rejects system-owned fields too. Credential registration uses a separate private store and can remain available even when configuration itself is read-only.

The form covers common fields.

product name, vendor, and support URL
control backend identity and API bind address
federation peers
federation transport security mode and key source
local Control shared-buffer slot size
security network admission, API authentication, token storage, Web login, and admin password storage
time-sync mode, role, leader, transport, and NIC
Event shared-memory sizing and auto-fit policy

The list describes the configuration model; not every field is writable from the browser in a managed system installation. Use the administrator CLI for system-owned settings. Use Advanced Override only for supported fields not represented by the form. Inline federation key material is intentionally kept out of the normal form; use a service-readable federation.security.key_file or key_env for product deployments.

Settings preserves existing timed_exchange.inline_payload_threshold values in the configuration round-trip for transport comparison modes. This value does not select the production local Control v5 path, which uses shared memory for every payload.

After saving config changes, use Apply saved settings for runtime-scoped changes. OS-level policy changes, service unit changes, kernel settings, cgroup delegation, and host network policy may still require a service restart sequence or host reboot. Managed apply is available only in the supported system service; it is not an automatic Kubernetes Pod restart.

The Security category combines login policy, administrator credentials, and API key management.

admin password storage
API key creation and revocation
browser login policy

Initial password setup displays N/A in the disabled current-password field and asks only for a new password and confirmation. No setup code is required. Anyone who can reach an open, unconfigured Console can register that first password; leave it open only on a trusted management surface. Existing passwords require the current password to change them, even when Console login is OFF. Turning login OFF preserves the password and independent API security setting. Console login cannot be enabled until an existing password has been verified. API security applies to external API clients; the Console never requires an API key, including when Console login is OFF. Environment-managed credentials are not rewritten by the GUI. An API password change revokes existing Console sessions. Local recovery with r2kernel-config setup-password requires a Control restart to invalidate sessions already held by that process.

The Terminal category enables or disables local OS login and exposes optional session limits. Its connection follows the Console protocol automatically. Choose Save & apply Terminal to change only Terminal settings immediately without restarting Control, including in Pods. Other drafts remain unsaved. Save all changes (save only) saves drafts across categories without applying them. Terminal apply does not apply Security changes. Console login, when ON, requires an administrator session for setting changes; local OS login itself uses the OS account regardless of Console/API settings. Applying Terminal policy ends existing sessions. Supported settings are enabled, max_sessions, connect_timeout_ms, idle_timeout_sec, and max_session_duration_sec. The legacy allow_insecure_http field is accepted during upgrade and ignored. Remove legacy transport, target_label, target_host, target_port, and host_key_sha256 entries from existing configuration; unsupported fields fail validation explicitly. The terminal status mode is fixed to local_login, and the former SSH target probe endpoint no longer exists. Console and OS credentials are separate. On Kubernetes, the terminal is in the Pod, not the Node host.

API keys are shown once when created. Use them for external clients, not for the browser Console session itself.

Development And Managed Launch

Direct shell or IDE execution remains useful during development, but it is not a managed launch. A directly executed process does not receive.

a resource lease
managed environment injection
CPU/cgroup placement
brokered NIC, CAN, serial, or device FDs
Web Console lifecycle ownership

Resource-control guarantees apply only when the subsystem package starts through r2kernel launch or a managed Web Console launch from Runtime. Stronger restrictions on unmanaged shell execution belong to product or appliance hardening policy.

Troubleshooting

Symptom	Check
Console cannot log in	Web login config, admin password file, source CIDR admission
API calls fail after login	API auth and Web login policy
Peer Console link is missing	peer API endpoint advertisement
Runtime has no procedures/operations	target subsystem registration
Event Probe is empty	Event WebSocket, filter, and publisher state
Operation remains queued	target subsystem processing and federation route
Resources show no leases	app launched through managed path
App UI returns 404	`frontend.type`, `frontend.root`, and `frontend.index`
App package install or Runtime launch rejects socket policy	`subsystem.role: app` and `resources.sandbox.network: brokered`
Apply runtime changes is unavailable	managed `r2kernel-control.service` path
