    Step 5 - Run Applications

    This step runs the first complete cleaner robot behavior.

    same cleaner platform + selected application + deployment = robot behavior

    The core tutorial runs Radar first. Radar needs no application-specific browser frontend, so it is the cleanest way to see the completed platform become a running robot. Teleoperation is still part of the tutorial, but it belongs in the advanced flow because it introduces package installation, instance-scoped frontend URLs, and the managed package frontend proxy.

    The simulator and world viewer are still provided by run_sim_world.py. This is the first step that uses r2kernel deploy up to reconcile the platform and an application together. Earlier steps used r2kernel launch run so each gateway/component/compound layer could be inspected on its own.

    1. Run Radar Autonomy

    Start the complete radar robot deployment from the installed root.

    cd <prefix>
r2kernel deploy up tutorials/deployments/radar.deployment.yaml --replace

    Expected terminal output shape.

    Deployment up: ...
  - app.cleaner.radar [managed] started
  - component.mobile [managed] started
  - component.manipulation [managed] started
  - component.gripper [managed] started
  - component.incinerator [managed] started
  - component.perception [managed] started
  - component.localizer [managed] started
  - component.navigation [managed] started
  - compound.cleaner [managed] started
  - gateway.device_gateway [managed] started

    If some platform subsystems are already running from earlier steps, deploy up reuses or replaces them according to the deployment command. If they are not running, it starts the complete radar robot.

    2. Observe The Robot

    Open the world viewer with the same host rule from Step 1. For a local browser and runtime, use the following.

    http://127.0.0.1:8091/?app=app.cleaner.radar

    For a remote runtime host, use the SSH forwarding from Step 1 and forward port 8001 for runtime events and policy controls. The browser URL remains the local URL above.

    The world viewer automatically polls the simulator API and observes runtime app status when the runtime is reachable. Use Reconnect only after restarting the runtime or changing the network path. The app query parameter selects the already-running application for the viewer's Start policy and Stop policy controls. These controls invoke that application's behavior; they do not launch subsystem processes or replace the deployment. deploy up starts the deployment.

    The localizer publishes its standard typed estimate through pose_estimate. The browser viewer subscribes to that same standard event. The solid robot is simulator ground truth. The amber marker is the estimated map pose, and Pose error reports their current planar distance. Ground truth is exposed to the tutorial viewer; the Gateway receives receiver-shaped simulated GNSS samples through its source adapter. The application receives only relative radar detections and APIs exported by the compound.

    The radar app uses the exported perception API as its target-selection input. It chooses a trash target only when its latest radar observation is fresh and the target is inside the configured scan range, then submits a framed goal through the exported navigation API. Stale tracks remain visible for diagnostics but cannot trigger a new navigation or collection command. The tutorial mounts cleaner_radar 0.08 m forward and 0.03 m left of cleaner_base, rotated 15 degrees about the vertical axis. The simulator measures from this sensor pose, and navigation resolves the declared Spatial transform before converting a sensor-relative goal into a map goal. Changing only the mount declaration without changing the simulated physical sensor would make the displayed frame graph and measurements disagree. The viewer also draws the beam from the simulator-reported sensor pose, not from the robot body's origin. The App transforms each radar-relative target to the body frame to plan a body-centered stand-off and calculate gripper extension. It expresses that body goal back in the radar frame when calling navigation, so navigation's own Spatial lookup is exercised as part of the tutorial. component.navigation owns the localization feedback loop and periodic mobile commands. When the goal succeeds, the app performs the collection sequence by calling articulated-trajectory, gripper, and trigger APIs. If no trash is inside range, the app reports radar.no_target and submits no navigation goal.

    The tutorial uses a deliberately limited range of 0.30 world units. The seeded arena contains a reachable cluster and isolated trash outside that cluster. Radar cleans what it can discover, then remains stopped with the out-of-range trash still visible. This is intentional and demonstrates that the application cannot act on objects its perception surface does not report.

    The sensor does not reveal the full circle at once. Its beam rotates at 20 RPM, so one revolution takes three seconds; a nominal 100 ms acquisition covers about 12 degrees. The Gateway returns bounded, time-stamped sectors with range, bearing, and signal measurements as the beam crosses objects. It does not return trash IDs, world coordinates, or a complete 360-degree detection list. The perception Component consumes those sectors and maintains short-lived tracks with Component-owned IDs for the application's scan, front, and nearest queries. The viewer may also show simulator ground truth for teaching, but that is not part of the robot-facing radar contract. The simulated sensor advances independently of the application loop, so the beam continues rotating while collection and burning procedures run. This tutorial uses the current Spatial transform for fresh observations; it does not yet provide historical transform lookup at each return timestamp or motion compensation across a moving robot's full revolution.

    The application locks the first selected contact until collection completes or the perception Component loses it. Contacts discovered during that action enter a FIFO queue; a newer or closer contact does not replace the active target. The app keeps that identity while it opens the gripper, extends the arm, closes the gripper, retracts, and calls the standard trigger API through the compound's trash_disposal export.

    During navigation, component.navigation refreshes velocity commands while the mobile component and simulator enforce their command TTLs. The app waits on the navigation operation instead of implementing a drive controller. When the target is close enough to collect, the app executes its explicit task sequence. The compound does not contain a second navigation or collection algorithm.

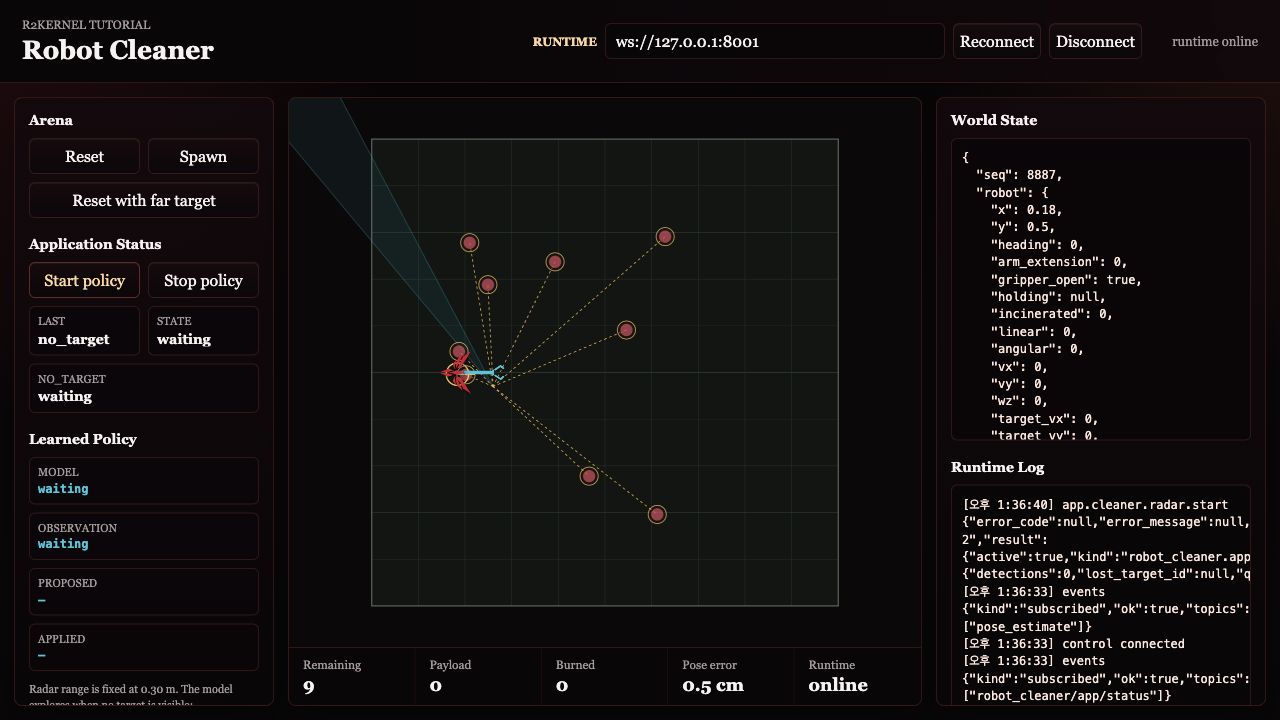

    The world viewer should show the cleaner arena without Teleop controls. Use Start policy and Stop policy to control the running radar behavior.

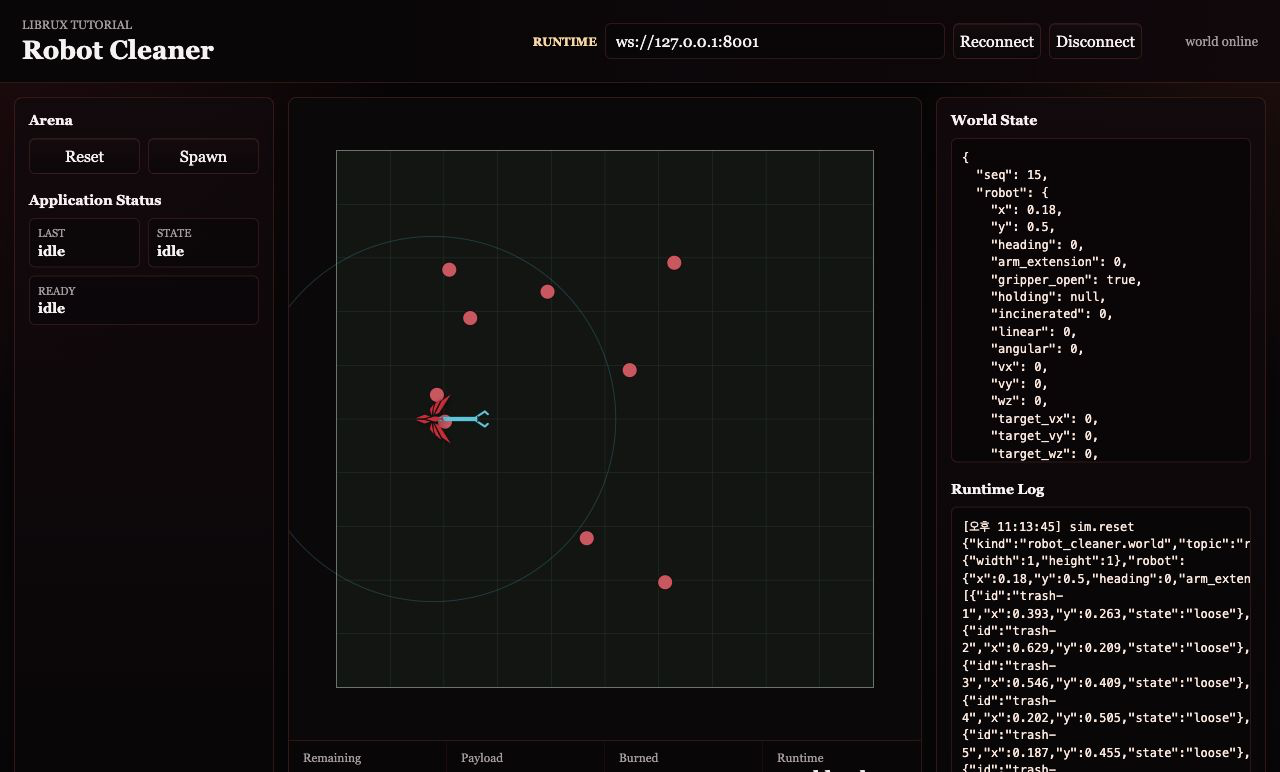

    Robot cleaner radar application

    Inspect the running deployment.

    r2kernel deploy status tutorials/deployments/radar.deployment.yaml

    3. What The Deployment Adds

    Open the radar deployment.

    nano tutorials/deployments/radar.deployment.yaml

    The important fields are these.

    Field Meaning
    robot the cleaner platform manifest used for slot validation
    application the selected app-role subsystem manifest
    instances package instances that should be running
    bindings how app requirements, spatial compound requirements, and component requirements connect

    The robot manifest selects component implementations through its slots. The compound requires those component contracts and exports selected conformance APIs. The app binds only to the compound boundary; the runtime resolves each export to the implementing component without executing a compound proxy.

    app.cleaner.radar
  -> compound.cleaner API exports
  -> component.navigation / component.manipulation / component.gripper / component.perception
  -> component.incinerator
  -> component.mobile / component.localizer and component contracts
  -> gateway.device_gateway
  -> simulator

    That is the point of the application layer. Radar describes robot behavior; it does not need to know whether the gateway is a simulator, a lab gateway, or a product device gateway.

    4. Remote Host Reminder

    For a remote runtime, keep the simulator ports on loopback and forward them as described in Step 1.

    python3 tutorials/run_sim_world.py --host 127.0.0.1

    Then start the radar deployment on that host.

    r2kernel deploy up tutorials/deployments/radar.deployment.yaml --replace

    With SSH forwarding active, open this world viewer URL. Forward port 8001 as well if the browser also needs to observe or control the runtime.

    http://127.0.0.1:8091/?app=app.cleaner.radar

    The world viewer has no application selector. To switch robot behavior, stop the active deployment or package instance and start the next application path.

    Runtime Graph

    Open Runtime > Graph in the Web Console while the deployment is running. The subsystem cards show the application-to-compound API exports, compound-to-component contracts, and component-to-gateway controls represented below. Enable the Spatial layer on the same graph to see each component's attachment points and provided frames, the cleaner's compound-owned mounts, and its provided frames. Enable Internal frames to include each component's static or dynamic transform. Select a spatial item to inspect its translation, rotation, update time, and freshness.

    flowchart LR Browser["Browser world viewer"] Simulator["Provided simulator process"] App["app.cleaner.radar"] Compound["compound.cleaner"] Mobile["component.mobile"] Arm["component.manipulation"] Grip["component.gripper"] Incinerator["component.incinerator"] Perception["component.perception"] Localizer["component.localizer"] Navigation["component.navigation"] Gateway["gateway.device_gateway"] Browser -->|"HTTP simulator API"| Simulator App -->|"exported APIs"| Compound Compound -->|"component contracts"| Navigation Compound --> Mobile Compound --> Arm Compound --> Grip Compound --> Incinerator Compound --> Perception Mobile --> Gateway Arm --> Gateway Grip --> Gateway Incinerator -->|"periodic DIO control + lease"| Gateway Perception --> Gateway Gateway -->|"gnss_cycle Control"| Localizer Mobile -->|"odometry"| Localizer Localizer -->|"map pose"| Navigation Navigation -->|"velocity command"| Mobile Localizer -->|"internal viewer diagnostic"| Browser Gateway --> Simulator App -->|"robot_cleaner/app/status"| Browser

    What This Proves

    • A deployment can bring up a full platform plus a selected application.
    • The application is the top-level behavior policy for the robot.
    • Applications depend on compound-exported API contracts, not vendor-specific controller names or component topology.
    • The world viewer is not the robot brain. It is a visualization and simulator control surface.
    • The core tutorial can run an application without requiring package installation or a custom browser frontend.
    • Teleoperation is an advanced topic because it adds managed package installation, package instance context, and package frontend proxy behavior.

    When finished, stop the active deployment and then stop the world terminal.

    r2kernel deploy down tutorials/deployments/radar.deployment.yaml

    Continue to Advanced Subsystem Packages.
