    Advanced Teleop Package Frontend

    The core tutorial used Radar first because it can run as a deployment without installing an application-specific browser frontend. Teleop is the next layer. It shows how a managed package can carry its own frontend and command its application subsystem instance through the runtime-managed proxy.

    Neither browser surface is a native R2Kernel subsystem. Both stay outside the native runtime boundary and connect through r2kernel-control.

    world viewer -> /api/v1/ws/events      -> observe app events
world viewer -> /api/v1/ws/control     -> invoke a running app's start/stop procedures
world viewer -> simulator API   -> read/reset tutorial world state
teleop UI    -> package proxy   -> command app.cleaner.teleop

    Native Event, Control, Procedure, and Operation traffic stays inside the R2Kernel host. Browser UIs only see host-control and managed package frontend facades.

    1. Open The World Viewer

    The cleaner arena is a static world viewer under tutorials/frontend.

    The important files are these.

    File Role
    index.html page layout and canvas
    styles.css arena styling
    app.js app-event WebSocket client, simulator polling, and teleop input
    arena_renderer.mjs canvas drawing of the arena, robot, radar scan, and localization estimate
    action_status.mjs action status panel for app and teleop results
    payloads.mjs payload unwrapping for WebSocket and simulator responses

    run_sim_world.py serves this directory with Python's static HTTP server. It does not start robot subsystems.

    2. Read The World Viewer Facade Client

    Open the browser code.

    nano tutorials/frontend/app.js

    Near the top of the file, the frontend defines the app event topic.

    const APP_TOPIC = 'robot_cleaner/app/status';

    It opens two WebSockets.

    /api/v1/ws/events
/api/v1/ws/control

    /api/v1/ws/events receives application status. /api/v1/ws/control carries the world viewer's Start policy and Stop policy requests to the application selected by the app query parameter. Teleop drive and manipulation commands use the package frontend. World state, reset, and trash spawn use the provided simulator HTTP API; those are not robot gateway endpoints.

    For Teleop, Start policy marks the app active; it does not begin autonomous motion. Stop policy stops the current drive command and marks the app inactive. Use the Teleop frontend below to issue movement and manipulation commands. These buttons do not create or replace a deployment.

    3. Prepare The Platform For Teleop

    Stop the radar deployment if it is still running.

    r2kernel deploy down tutorials/deployments/radar.deployment.yaml

    Start the reusable platform without an application.

    r2kernel deploy up tutorials/deployments/stages/robot.deployment.yaml

    Open this URL.

    http://127.0.0.1:8091/?app=app.cleaner.teleop

    The page starts simulator polling immediately and attempts to attach to the runtime event stream automatically. Before a runtime connection is available, the browser remains useful as a simulator view. It shows world online when the simulator API is reachable and upgrades to runtime online when the runtime event facade is reachable.

    Robot cleaner before connecting

    After the automatic runtime connection is online, the world viewer also shows application status events. At this point, no teleop app is running yet, so the status may remain idle. The connected illustration shows a stopped application; the runtime connection indicator is the same before launching Teleop.

    Robot cleaner connected

    4. Install And Launch Teleop

    Teleoperation uses an installed managed package instance as the command target, and the controls are packaged with the teleop application subsystem.

    The installed Teleop package also needs the tutorial support files. The normal installer places them under <runtime-prefix>/tutorials, usually <prefix>/tutorials. Keep that directory available to the launched app. For a custom installation prefix or a separate source checkout, set R2KERNEL_TUTORIAL_ROOT to its absolute tutorials directory in the package manifest's entrypoint.env before building the archive. This must be the path on the runtime host.

    If the teleop package is not installed yet, build an archive and install it from the Web Console Packages page.

    r2kernel package build tutorials/subsystems/app.cleaner.teleop \
  --out /tmp/r2kernel-teleop-app \
  --force
tar -czf /tmp/r2kernel-teleop-app.tgz -C /tmp/r2kernel-teleop-app .

    Then go to Runtime, choose Launch package instance, select tutorial.robot_cleaner.teleop, and launch it with this instance id.

    app.cleaner.teleop

    Open the package frontend from Runtime, or use the instance URL.

    http://127.0.0.1:8001/api/v1/packages/tutorial.robot_cleaner.teleop/ui/?instance=app.cleaner.teleop&context=/api/v1/packages/tutorial.robot_cleaner.teleop/instances/app.cleaner.teleop/context

    The teleop frontend is the operator control surface. It can be placed beside the world viewer and shrinks to a narrow browser column for split-screen testing.

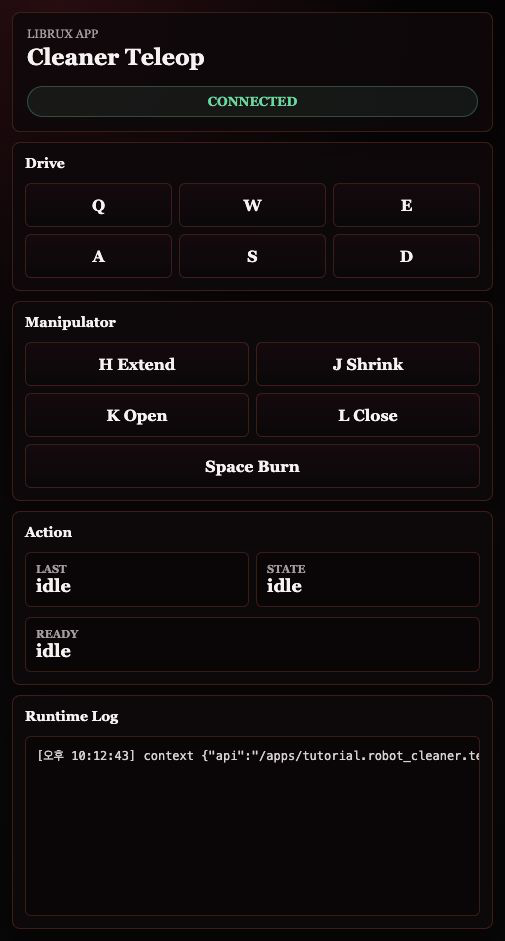

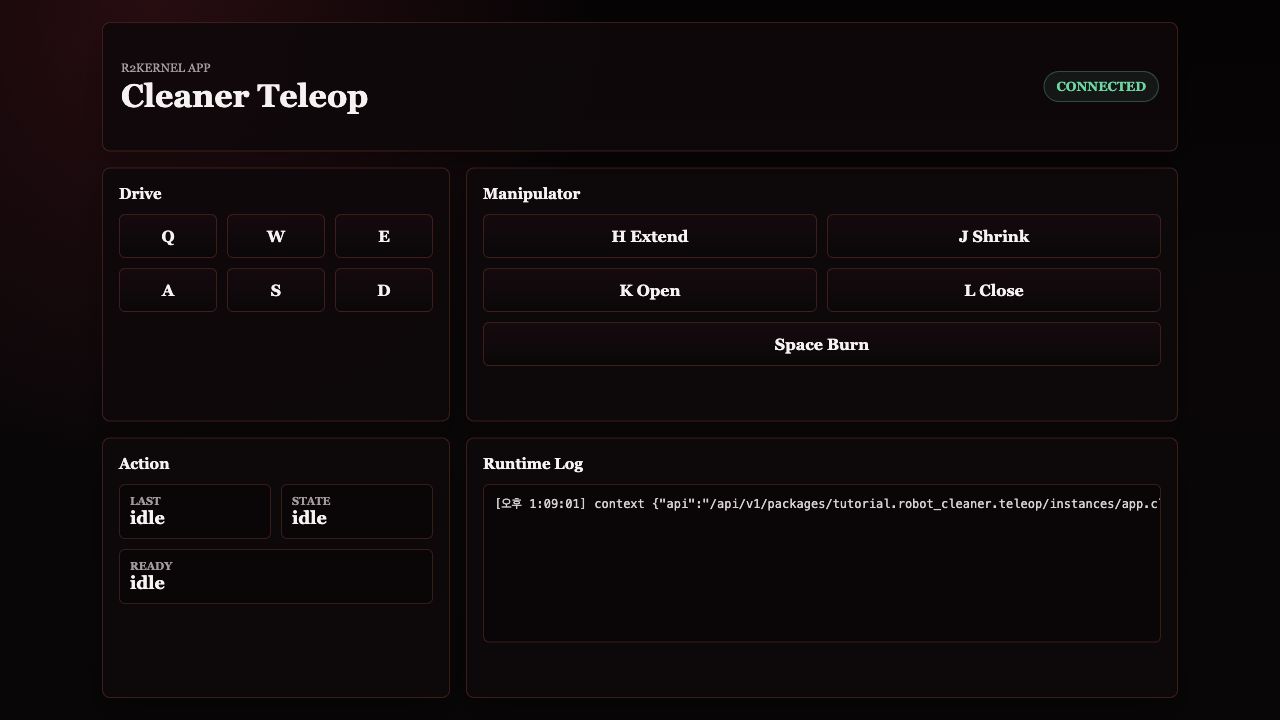

    Robot cleaner teleop frontend

    5. Command Through The App Proxy

    When the operator presses a button or key, the package frontend calls the managed same-origin package proxy. The proxy forwards the request to the app's brokered loopback frontend API. For teleop, the app then calls bound compound exports.

    teleop package frontend
  -> /api/v1/packages/tutorial.robot_cleaner.teleop/instances/app.cleaner.teleop/api/command
  -> app.cleaner.teleop
  -> compound.cleaner exported Event / Procedure / Operation APIs
  -> component.mobile / component.manipulation / component.gripper / component.incinerator
  -> gateway.device_gateway

    This keeps the browser from bypassing the application policy. The teleop App does not open a Control endpoint or connect to the gateway. component.mobile turns accepted velocity references into timed gateway Control commands and owns their validity bounds.

    Movement keys in the teleop package frontend are hold-to-drive. The browser keeps refreshing a short-lived velocity command while the key or button is held, and sends stop when it is released. Movement is robot-relative. After rotating the robot, W drives forward in the direction the robot is facing.

    Key Action
    W or Up drive forward in the robot body frame
    S or Down drive backward in the robot body frame
    A or Left strafe left in the robot body frame
    D or Right strafe right in the robot body frame
    Q rotate counter-clockwise
    E rotate clockwise
    H extend the manipulator
    J shrink the manipulator
    K open the gripper
    L close the gripper
    Space burn trash stored in the robot body

    Manual collection is intentionally step-by-step.

    1. Open the gripper with K.
    2. Extend the manipulator with H toward a piece of trash.
    3. Close the gripper with L.
    4. Shrink the manipulator with J to bring the trash into the robot body.
    5. Press Space to burn the stored payload.

    If the gripper is closed while extending, the arm pushes loose trash away. If the gripper is open while extending, the trash is not pushed; closing the gripper near the arm tip grabs it. If you shrink without a closed gripper hold, the trash stays in the arena. If you do not burn stored trash, it remains as payload on the robot and can accumulate.

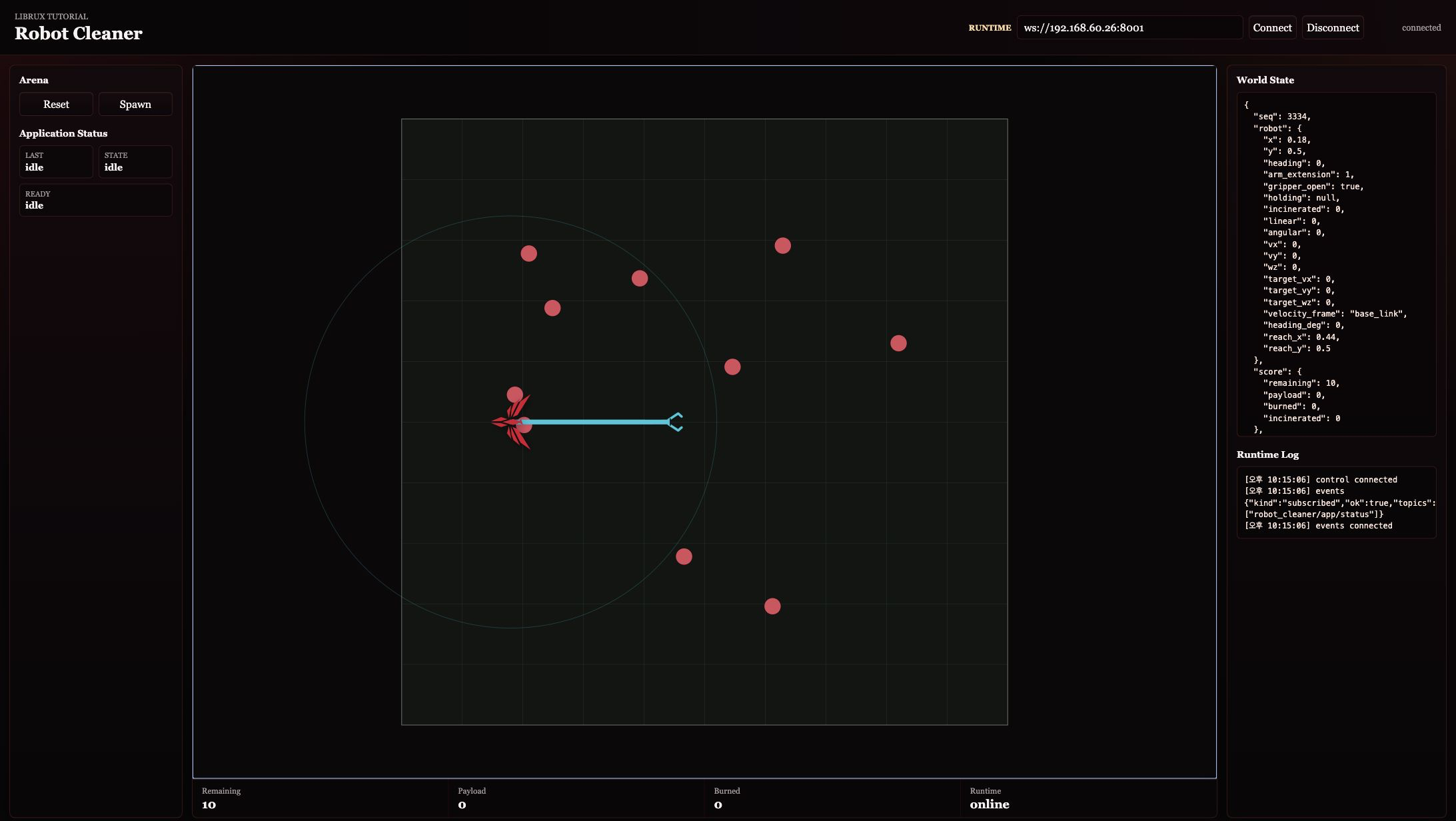

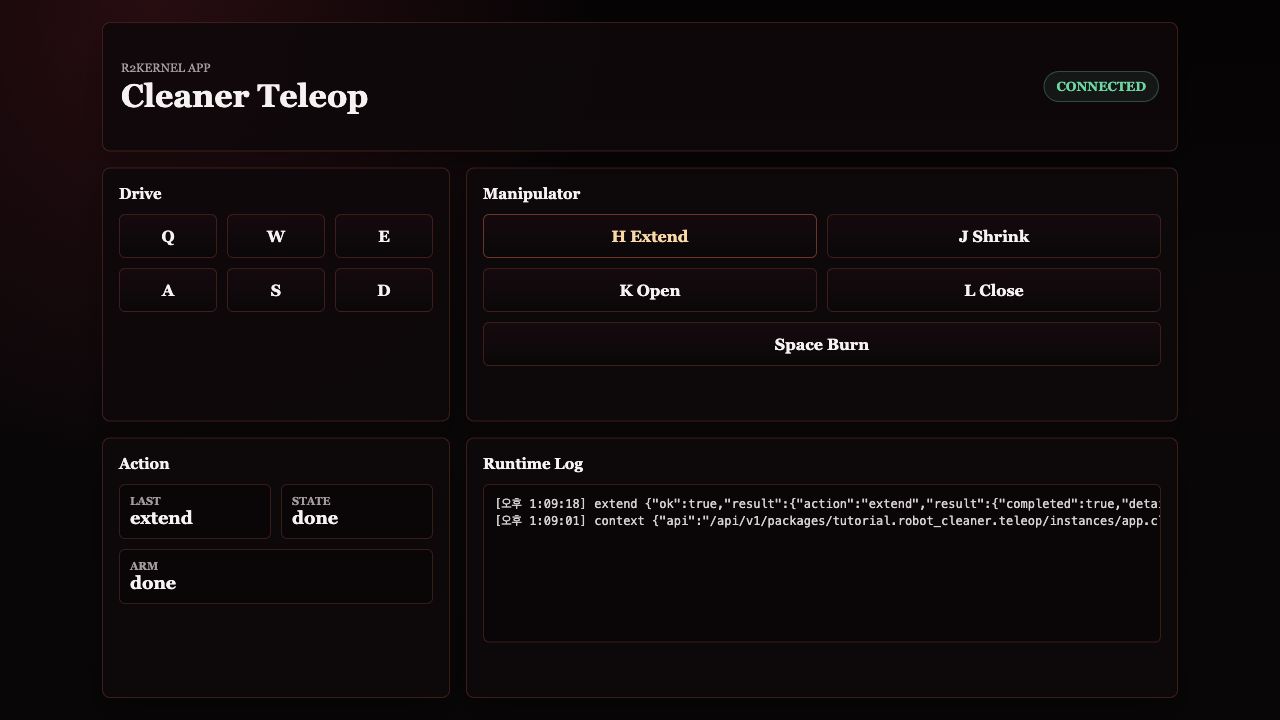

    Robot cleaner teleop manual manipulation

    The teleop package frontend shows the latest command result. Payload in the world viewer bottom status strip is the number of trash items currently stored in the robot body and not yet burned.

    6. Browser Defaults For Remote Runs

    The frontend defaults to the page host for both runtime connections.

    • WebSocket control backend - ws://<page-host>:8001
    • simulator API - http://<page-host>:8092

    On a local install, open.

    http://127.0.0.1:8091/?app=app.cleaner.teleop

    For a remote runtime host, keep the simulator on loopback and use the SSH forwarding described in Step 1.

    python3 tutorials/run_sim_world.py --host 127.0.0.1

    Then start the platform deployment on that host.

    r2kernel deploy up tutorials/deployments/stages/robot.deployment.yaml

    Forward port 8001 too for runtime events and the managed Teleop frontend. Then open this URL through the forwarded ports.

    http://127.0.0.1:8091/?app=app.cleaner.teleop

    Reload the world viewer after starting the platform and teleop package instance. Use Reconnect only after restarting r2kernel-control or changing the host/port path. The viewer's policy buttons invoke the selected running app; they do not launch or replace its deployment. Use the teleop package frontend only when the teleop package instance is running. Explicit ws, sim, and connect query parameters are intended for automated checks or unusual proxy layouts, not the normal tutorial path.

    Cleaner Robot Browser Graph

    flowchart LR Browser["Browser world viewer"] TeleopUI["Teleop package frontend"] Facade["Host-control WebSocket facade"] PackageProxy["Managed package frontend proxy"] Simulator["Provided simulator API"] App["Application subsystem"] Gateway["gateway.device_gateway"] Browser -->|"HTTP state/reset/spawn"| Simulator App -->|"robot_cleaner/app/status"| Facade Facade -->|"/api/v1/ws/events"| Browser TeleopUI --> PackageProxy PackageProxy --> App App --> Gateway Gateway --> Simulator

    The world viewer is a visualization surface. The teleop package frontend is an operator surface, but it still does not bypass the application subsystem.

    Continue to Advanced Resource Policy.
