Cleaner Robot Tutorial
This tutorial builds one visual robot using the same managed package path used
for a real robot. The provided script starts only the simulation world and
browser view. Individual robot subsystems are started with r2kernel launch run
while you learn each layer. The full robot is reconciled with
r2kernel deploy up after the platform and application are defined.
What You Will Build
The platform is a set of managed subsystem packages.
cleaner_2d
gateway.device_gateway simulator-backed gateway subsystem over standard contracts
component.mobile mobile-base component subsystem
component.manipulation manipulator component subsystem
component.gripper gripper component subsystem
component.incinerator lease-controlled disposal component subsystem
component.perception perception component subsystem
component.localizer GNSS position and odometry localization subsystem
component.navigation map-relative goal navigation subsystem
compound.cleaner spatial composition-only compound subsystem
The same platform can run three application packages.
| Application | Behavior |
|---|---|
app.cleaner.teleop |
operator drives, collects, and burns trash |
app.cleaner.radar |
range-limited perception-driven app searches for detected trash |
app.cleaner.learned_radar |
learned radar policy explores beyond the initial sensor range and collects trash |
Execution Flow
simulator/ and frontend/ are tutorial infrastructure. They are not R2Kernel
subsystems. The R2Kernel robot starts at the gateway subsystem boundary.

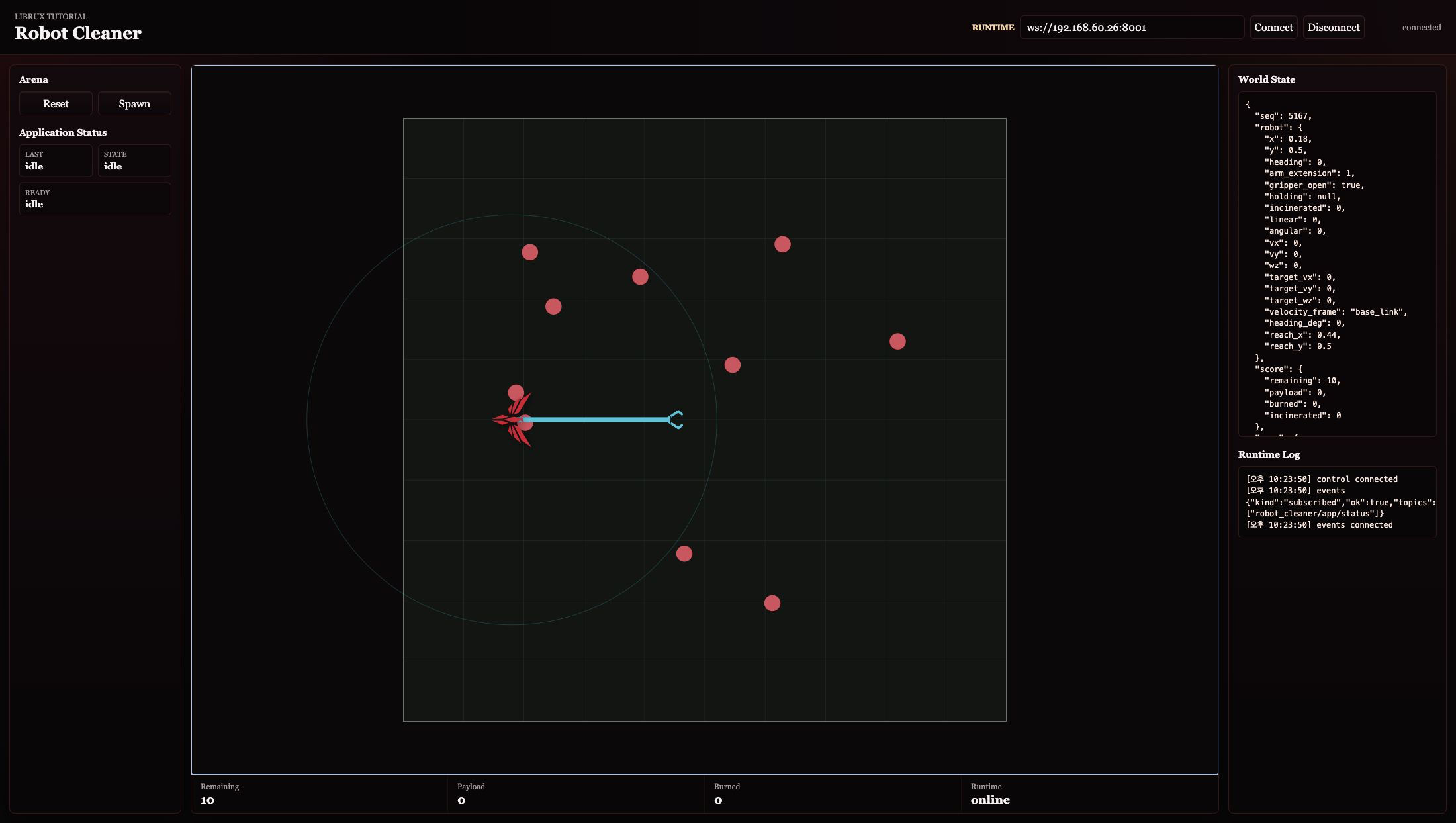

The visible tutorial uses two browser surfaces.
| Surface | Where it appears | Purpose |
|---|---|---|
| World viewer | http://127.0.0.1:8091/ locally or through SSH forwarding |
simulator display, reset/spawn controls, app status and start/stop controls |
| Package frontend | Runtime card for an installed package instance | operator controls owned by that application package |
In the advanced teleop step, keep both surfaces open side by side. The world viewer shows what the robot is doing, and the teleop frontend sends commands through the managed package frontend proxy.
Launch Modes In This Tutorial
There are three ways you may see cleaner code run.
| Mode | Use | What R2Kernel manages |
|---|---|---|
python3 path/to/subsystem.py |
source-level debugging while editing one subsystem | subsystem registration only |
r2kernel launch run <package> |
normal single-subsystem tutorial execution | package validation, resource lease, runtime env, lifecycle handle |
r2kernel deploy up <deployment> |
full robot and application execution | desired-state reconciliation across package instances |
Direct Python execution can still register a subsystem with the control backend
when you pass the right manifest and binding arguments. It is useful
for IDE/debugger work, but it is not a managed robot subsystem. It does not get
a launcher resource lease, package validation, package runtime directory, or
r2kernel launch list/status/stop lifecycle management.
For that reason, the tutorial uses r2kernel launch run while building
individual layers and introduces r2kernel deploy up only after the compound
subsystem layer, platform, and application are defined.

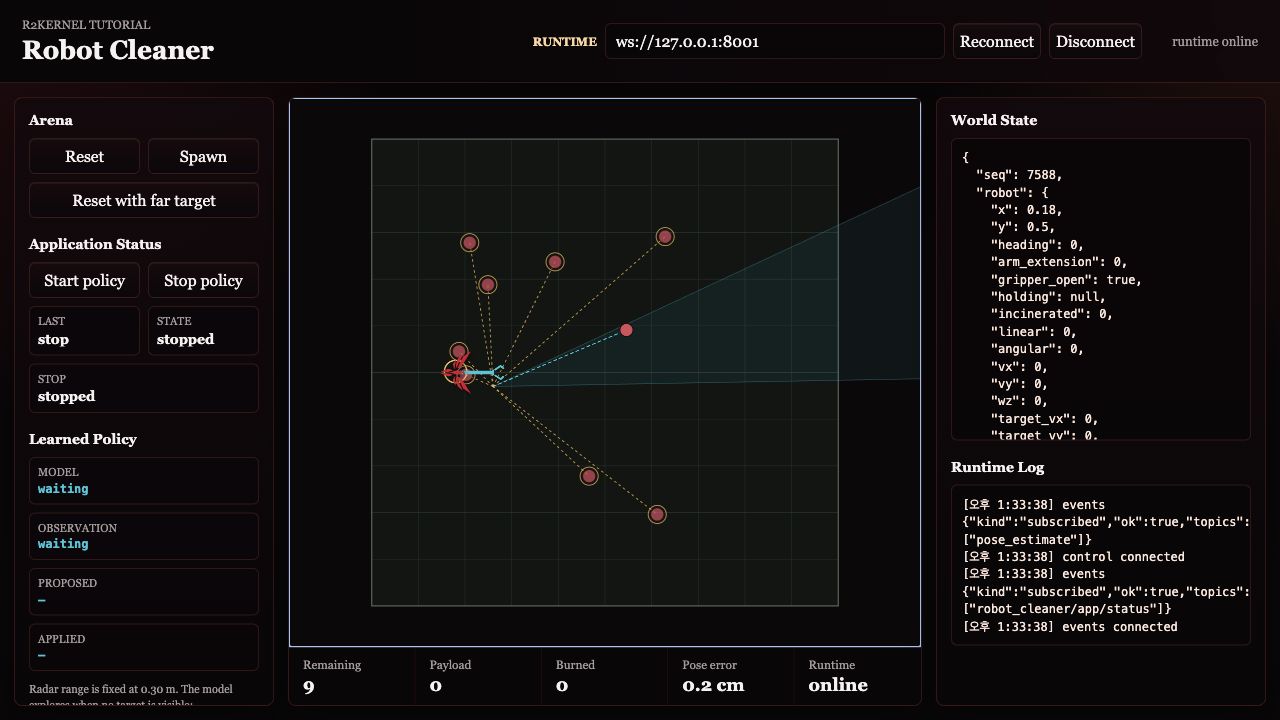

Learned Radar Stop And Restart
The learned-radar app runs its policy in a worker. When the app receives Stop, it cancels the active run. Once Stop returns, that canceled run sends no further policy actuation. The worker checks cancellation after delayed scan calls and before each policy-actuation step.
If a delayed scan worker is still running, the app keeps its worker reference and rejects a restart until the worker exits. This prevents a new run from overlapping the canceled one.
Stop waits for an in-progress synchronous actuation call to return and then performs its own stop processing. This implementation does not establish a bounded Stop response time. It does not guarantee an instantaneous physical halt and is not a hardware emergency-stop mechanism. The tutorial tests this behavior with deterministic in-memory concurrency unit tests; it has not been verified on a physical device or Kubernetes cluster.
Steps
| Step | Page | Primary command |
|---|---|---|
| 1 | Start Simulation World | python3 tutorials/run_sim_world.py |
| 2 | Build Gateway Subsystem | r2kernel launch run tutorials/subsystems/gateway.device_gateway --instance gateway.device_gateway --set simulator.url=http://127.0.0.1:8092 --detach |
| 3 | Add Component Subsystems | r2kernel launch run ... --bind ... --detach |
| 4 | Define Platform | r2kernel launch run tutorials/subsystems/compound.cleaner --bind ... --detach |
| 5 | Run Applications | r2kernel deploy up tutorials/deployments/radar.deployment.yaml --replace |
Advanced topics after the robot is moving.
| Topic | Page |
|---|---|
| Package layout | Subsystem Packages |
| Managed teleop frontend | Teleop Package Frontend |
| Resource control for managed packages | Resource Policy |
| Multi-host cleaner topology | Federation |
Repository Layout
tutorials/
simulator/ provided simulation world
frontend/ browser world viewer
robot/
r2kernel.robot.yaml robot manifest: parts and slots
subsystems/ subsystem package roots
component.mobile/ role=component package that implements the mobile-base component contract
component.localizer/ role=component package that estimates map-relative robot pose
component.navigation/ role=component package that executes map-relative navigation goals
component.incinerator/ role=component package that owns the disposal output pulse and safety
app.cleaner.teleop/ application subsystem package with managed package frontend
app.cleaner.radar/ application subsystem package
deployments/ deployment manifests for staged and app runs
run_sim_world.py simulation/frontend bootstrap only
Deployment files are split by purpose.
| Path | Level | Purpose |
|---|---|---|
deployments/stages/gateway.deployment.yaml |
subsystem composition | start only the simulator-backed gateway subsystem |
deployments/stages/components.deployment.yaml |
subsystem composition | start gateway plus component subsystems and validate their bindings |
deployments/stages/robot.deployment.yaml |
platform bring-up | validate and run the app-less platform |
deployments/teleop.deployment.yaml |
full robot application manifest | validate or headlessly run the platform with the teleop app |
deployments/radar.deployment.yaml |
full robot application | run the platform with the perception-driven app |
deployments/dev/*.deployment.yaml |
external subsystem composition | binding data for source-level debugging where processes are started outside deploy up |
The stages/gateway and stages/components files intentionally omit
robot. They are partial subsystem compositions, not full robot deployments.
stages/robot includes robot but no application, so it checks the
app-less platform. The top-level app deployments include both robot and
application. The teleop browser controls use the Package install plus Runtime
launch path because package frontend URLs are tied to launched package
instances.
Start Here
Use an installed R2Kernel runtime.
. <prefix>/env.sh
r2kernel system status
Check Python SDK availability from the installed runtime.
. <prefix>/env.sh
python3 -c 'import r2kernel; print("R2Kernel Python SDK ready")'
The installed env.sh exposes the unpacked SDK runtime used by managed
packages. Use a virtual environment or a matching source checkout only for
editable SDK development, as described in
Developer Guide.
Then start the visible world.
cd <prefix>
python3 tutorials/run_sim_world.py
Open this URL.
http://127.0.0.1:8091/
If R2Kernel is running on a remote host and your browser is on another machine, keep the simulator bound to loopback and use SSH forwarding from Step 1.
python3 tutorials/run_sim_world.py --host 127.0.0.1
Then open http://127.0.0.1:8091/ through the forwarded ports. Step 1 explains
the simulator ports and the additional runtime port needed in later steps.
Continue to Step 1 - Start Simulation World.
